Quick-Seal Universal F 9654/UF

Quick-Seal Universal F 9654/UF

Quick-Seal Universal F 9654/UF

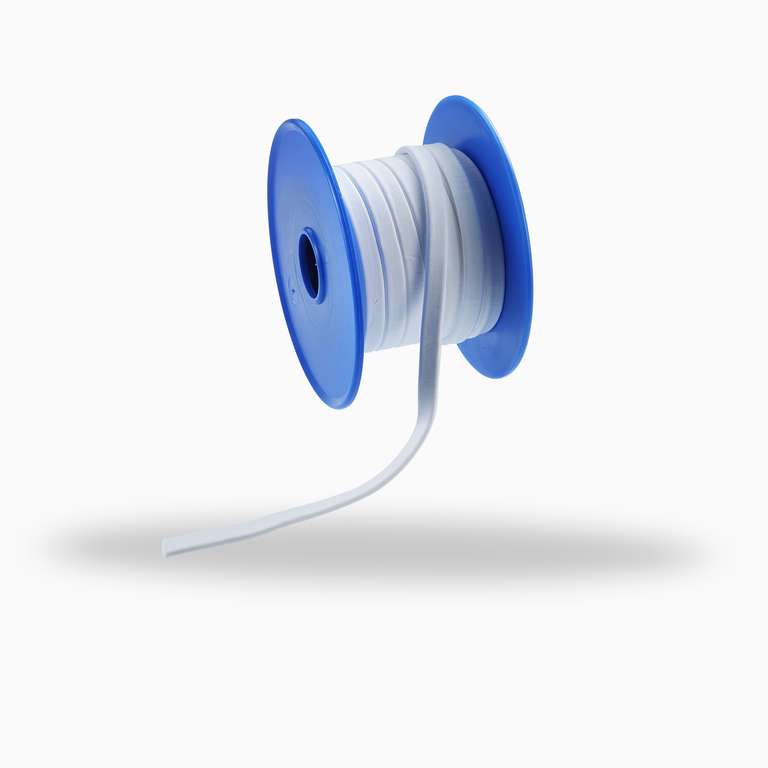

Quick-Seal Universal F 9654/UF is a self-adhesive sealing tape made from 100% virgin ePTFE (Teflon). The special manufacturing method creates a microporous, monoaxial fiber structure (ePTFE), that gives the seal its special properties.


  • Outstanding adaptability
  • Easy handling
  • Very good chemical resistance
  • Does not age

Operating range

Pressure: The pressure resistance depends exclusively on the installation and operating parameters (please read our installation and maintenance instructions).
  • Continuous operation:
    t = -240 °C ... +270 °C
  • transient peak temperature:
    t = +315°C
Recommended surface roughness:
RZ = 12.5 ... 50 μm
Chemical resistance: pH = 0 … 14 Resistant to all media apart from dissolved and molten alkali metals and elementary fluorine at t > 150 °C and p > 40 bar.


With the self-adhesive backing, the sealing tape is quick and simple to install. The adhesive life depends on the storage and installation conditions.

Forms of supply

  • Sold by length on rolls in 5, 10, 25 and 50 m lengths
  • Standard dimensions:
    (Width x Height)
    3 x 1,5
    5 x 2
    7 x 2,5
    10 x 3
    12 x 4
    14 x 5
    17 x 6
    20 x 7
    28 x 5
    40 x 5

Similar products

Elastic Tankpak 6756

EagleBurgmann Elastic Tankpak 6756 is an excellent gasket for sealing transport containers for chemicals or solvents. The core is made from a hollow elastomeric material (EPDM) wrapped in PTFE foil, thus guaranteeing optimum chemical resistance for the entire seal. The polypropylene middle layer primarily acts as a cushion and buffer, and it is first wrapped with PTFE foil. The entire seal is then over-braided with PTFE yarn, fixing it firmly to the rest of the material composite.

Quick-Seal MB4 9654/MB4

Quick-Seal MB4 9654/MB4 is a sealant tape made of 100 % virgin, expanded PTFE manufactured by a special process giving the tape a multi-directional fibre structure with a self-adhesive strip on one side. Quick-Seal MB4 9654/MB4 is currently the first and only multidirectional ePTFE tape with approval and certification according to Germany's TRD 401 /VdTÜV-Merkblatt Dichtung 100 regulation and is especially adapted to the needs of inspection hole and man-hole connections.

Quick-Seal Multi 9654/MB

Quick-Seal Multi 9654/MB sealing tape consists of virgin multidirectional expanded PTFE. The modern production process creates a multidirectional fiber structure that gives the seal its special properties.

Inquire about individual solutions

We develop and produce customer-specific special and individual solutions for every application.

Inquire now Discover reference projects
Back to the overview

Technical Datasheet UF Quick Seal Universal TDB 9654
