SPB (Plan 53B)

Request product

SPB (Plan 53B)

SPB (Plan 53B)
Request product
SPB6002A4 with air cooler

A From mechanical seal
B To mechanical seal
C Fill
F Drain
H N2 Precharge

SPB (Plan 53B)

Features

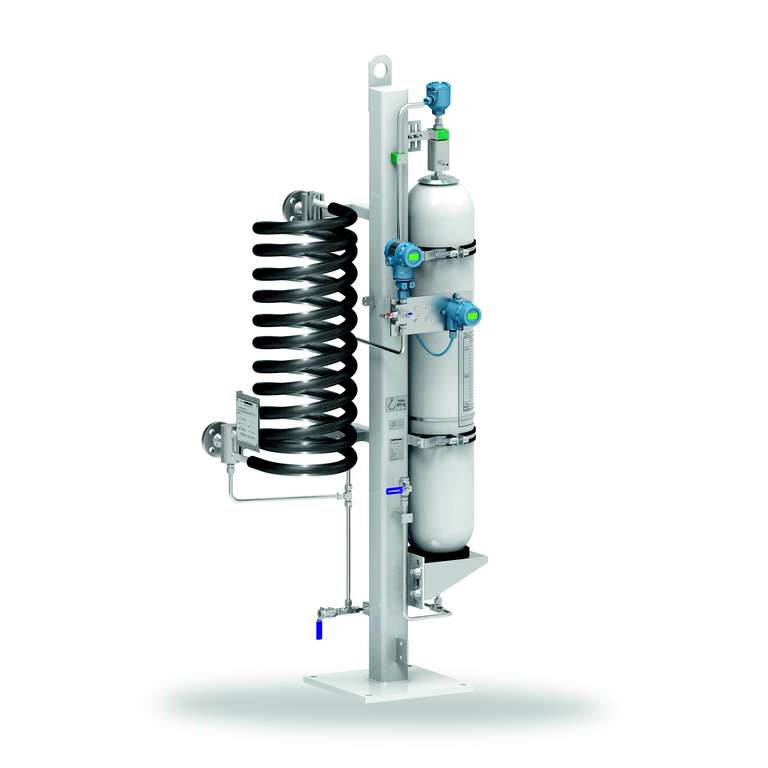

Pressurized barrier system (closed circuit) for use in seal systems with high pressures and/or for hazardous/environmentally harmful processes. The SPB (Plan 53B) range is available with a pressure accumulator, cooler (finned tube, water or air cooler with fan) and a wide range of instruments.

Circulation in accordance with API 682 / ISO 21049: Plan 53B

Advantages

  • Pressurization is by means of a pre-loaded bladder accumulator
  • The nitrogen is separated from the barrier medium by membranes in the accumulator: nitrogen cannot get into the barrier medium or process medium
  • Barrier pressure is created without any need for connection to a nitrogen supply
  • Available with finned tube, water or air coolers with fan
  • Modular system: combination with a wide range of system components/instruments possible

Standards and approvals

  • PED 2014/68/EU (Design and production in accordance with EU Pressure Equipment Directive)
  • ASME VIII, Div. 1 (Design, calculation and production)

Functional description

The SPB is designed to perform the following functions of a barrier system:
  • to pressurize the barrier chamber
  • leakage compensation
  • to cool the seal

Pressurization (> process pressure) prevents the process medium from getting into the barrier circuit or the atmosphere. Pressurization is supplied by a pressure accumulator which is pre-loaded with nitrogen. Circulation in the barrier circuit takes place by the thermosiphon principle or by forced circulation, e.g. with a pumping screw.

Notes

A refilling unit has to be provided.


Product variants

Designation SPB6M0003-00 SPB6M0004-00 SPB6M0024-00 SPB6M0029-00 SPB6M0030-00 SPB6M0031-00
Design: 50barg @ 95°C
(725PSI @ 203°F)		 ■ ■ ■ ■ ■ ■
Tubing
Piping		 ■ ■ ■ ■ ■ ■
air heat exchanger WEL6 WEL6/td>
water heat exchanger WEF6 WEF6 WEF6 WEF6
Cooling capacity [kW]1)/ [kW]2)
Process media water		 1,4 / 1,8 8,2 / 12,4 7,1 / 10,8 1,4 / 1,8 8,2 / 12,4 7,1 / 10,8
Cooling capacity [kW]1)/ [kW]2)
Process media Oil ISO VG10		 1,1 / 1,5 2,7 / 4,1 2,1 / 3,2 1,1 / 1,5 2,7 / 4,1 2,1 / 3,2
Bubble memory: CrMo-Stahl
Bubble: Nitril		 35 Liter 35 Liter 35 Liter 35 Liter 35 Liter
Floating alarm ■ ■ ■ ■ ■ ■

Air cooler:
1) Low Flow: 8 l/min (Process Fluid), 0,7 m/s (Air Velocity), △T = 40K
2) High Flow: 15 l/min (Process Fluid), 1,0 m/s (Air Velocity), △T = 40K

Water cooler:
1) Low Flow: 8 l/min (Process Fluid), 10 l/min (Cooling Water), △T = 40K
2) High Flow: 15 l/min (Process Fluid), 20 l/min (Cooling Water), △T = 40K

Other versions and connections (flanged, threaded, welded) on request.
