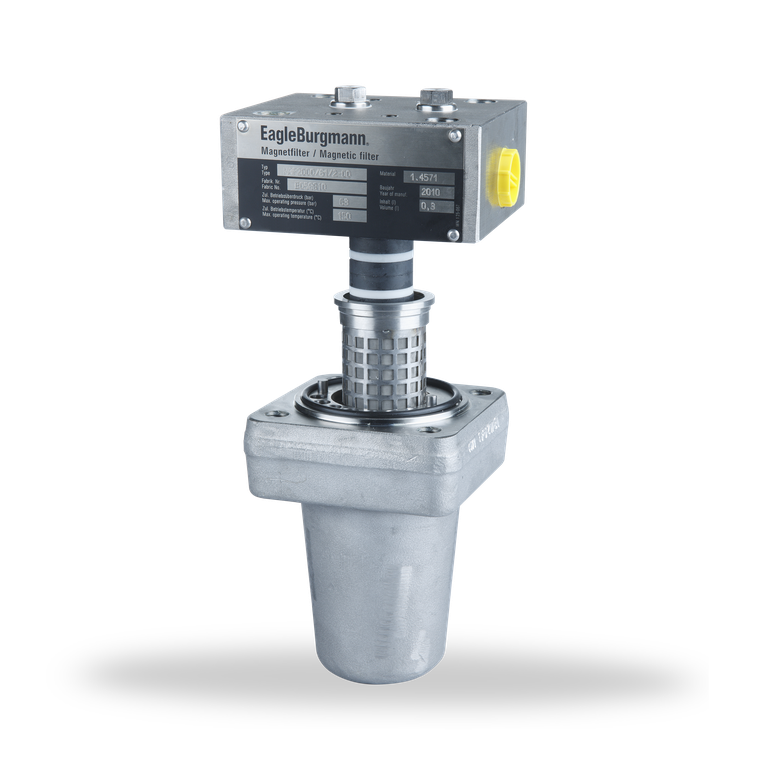

MAF2001 Magnetic filter

MAF2001 Magnetic filter
Item Description
1 Filter cover
2 Filter barrel
3 Element insert
3a Internal mesh
6 Ring magnet
13 Venting screw

MAF2001 Magnetic filter

Features

Magnetic filters of the MAF2001 range are inline filters for installation inside pipelines. The combination of magnetic rod and filter element guarantees a high level of efficiency. Magnetic filters are used in seal supply systems and any other such systems in which a liquid has to be cleaned of magnetic and non-magnetic impurities up to a certain size.

Advantages

  • Combination device: magnetic filter and filter element
  • Internal mesh to protect the filter element for reverse currents
  • Venting screws in the filter inlet and outlet can be used as connections for maintenance or differential pressure indicator
  • Housing can be dismantled: simple maintenance and cleaning
  • Two types of contamination indicator are available as accessories: visual monitoring and/or in combination with an electric contact
  • All pressure-loaded parts are forged components

Functional description

The magnetic rod is positioned in the filter in such a way that it catches magnetic particles flowing past in the medium on all sides. Partial coarse filtration is provided by the incorporated filter element.



Product variants

Designation Process connections Allowable pressure Allowable temperature1) Filter grade Weight (approx.) Housing, filter head Filter insert, filter element2) O-Ring Gasket
MAF2001/G1/2-00 G 1/2" 60 bar
(870 PSI)
150 °C
(302 °F)
50 µm 7.8 kg
(17.2 lb)
1.4571 1.4301 Viton® T2
MAF2001/G3/4-00 G 3/4" 60 bar
(870 PSI)
150 °C
(302 °F)
50 µm 7.8 kg
(17.2 lb)
1.4571 1.4301 Viton® T2
MAF2001/G1-00 G 1" 60 bar
(870 PSI)
150 °C
(302 °F)
50 µm 7.8 kg
(17.2 lb)
1.4571 1.4301 Viton® T2
MAF2001/NPT1/2"-00 1/2 NPT 60 bar
(870 PSI)
150 °C
(302 °F)
50 µm 7.8 kg
(17.2 lb)
1.4571 1.4301 Viton® T2
MAF2001/NPT3/4"-00 3/4 NPT 60 bar
(870 PSI)
150 °C
(302 °F)
50 µm 7.8 kg
(17.2 lb)
1.4571 1.4301 Viton® T2
MAF2001/NPT1"-00 1 NPT 60 bar
(870 PSI)
150 °C
(302 °F)
50 µm 7.8 kg
(17.2 lb)
1.4571 1.4301 Viton® T2

1) Higher values on request.
2) Other materials on request.
